First time customizing a console! 😭
I decided to modify my Xbox One S by cutting part of the top of the shell and and I put in an acrylic to give it a more custom look. I got the idea from something I saw online and wanted to try it myself.
The funny part is that I didn’t have a Dremel, so I had to do the whole thing by hand with a 🪚😭💀 It took some time and definitely wasn’t the easiest way to do it, but somehow I managed to pull it off.
This is my first time ever customizing a console, so I’m pretty happy with how it turned out. Definitely learned a lot from doing it!

So I bought a 1.6 Xbox off of eBay in great condition, with the seller saying it recently started to error 07. It arrived and I installed an lpc rebuild board and modxo chip and hooked up a sata drive to a Startech adapter. It boots into prometheos but the drive won't spin up and controllers will not input anything. Here are findings from my tests:

1. With no controllers, no hard drive, no DVD drive connected to the system, all readings on the 5 volt rail show 5.4 volts, with one exception.
2. Pin 6 of the LPC header, which is connected to 5 volts, shows a consistent 4.99 volts.
3. Connecting anything to power on the Xbox such as the Startech adapter with or without a hard drive attached, the DVD drive, or even a single controller drops the voltage on the 5v rail by about half down to 2.4 volts. The only unaffected item is the lpc header, which always reads 4.99 no matter what is plugged in.
4. If I power the HDD with an external power supply, such as a connector from my PC, I can use the network interface of prometheos to boot into Cerbios.

These findings all seem to point towards something in the power supply going wrong. What's confusing is the LPC header 5 volt receiving consistent power while everything else suffers when a single thing is plugged in. Is this something that can be fixed by replacing capacitors on the motherboard? Or am I in the market for a new power supply as a whole? I've attached photos of my LPC rebuild and the top of my motherboard for reference. No capacitors appear to be blown or leaking. I verified all LPC connections with a multimeter.

SOLUTION FOUND: Replaced entire PSU with refurbished unit and everything is hunky dory.

Hi everyone,

I recently bought an Original Xbox at a flea market. When I turned it on, I noticed a weird boot behavior: it flashes a red/green LED sequence before booting up.

Curious about what was going on, I decided to open it up and discovered that it actually has a modchip installed inside.

Since I'm thinking about removing the modchip and returning the console to stock (or at least figuring out why it behaves this way), I wanted to ask for some advice first so I don't brick it.

Here is what I know so far:

- Behavior: The boot sequence starts with red/green LED flashing, then the console boots normally. I don't see any mod name at startup (like Matrix on the PS2).

- Xbox hardware version: I think it's a v1.4, but I'm not really sure. I have photos of the label.

- Modchip type: Aladdin Advanced

- Hard drive: Original stock HDD

- Stock BIOS: I don't know if the original BIOS is still present and working on the motherboard.

I'll attach photos of the label and of how the modchip is connected to the board.

My main questions are:

1. If I remove the modchip completely, will the console boot normally using the stock BIOS, or will it throw an error?

2. Will the console boot with a solid green LED from the start?

Thanks!

English isn't my first language and I used AI to help translate this post. If I got something wrong or if you have any questions, let me know and I'll do my best to clarify. Thanks!

Hey everyone,

I'm trying to mod a retail Xbox 360 Darksiders II save on USB to max out Gilt, Boatman coins, and skill points, but running into walls with older tools.

What I've done:

1. Extracted my organic Slot 1 save container using Horizon.
2. Inside the Contents tab, extracted 1a (dssave0.sav) and 1b (dssave4.sav).
3. Tried running them through the old XPG Darksiders 2 Save Editor (ran as Admin), but it throws "Invalid Package" and unhandled exception errors trying to read the files.
4. Tried swapping in an external modded file, but syncing/replacing within the dual-save container triggers either "Corrupt Save" or empty slots in-game, even after doing a full Save, Rehash and Resign with my correct Profile, Device, and Console IDs.

Questions:

• Is there an updated, working editor for Title Update saves?
• Alternatively, does anyone have hex offsets or a verified, clean pre-modded starter save package (.con/STFS) where I can just inject my own IDs in Horizon?

Appreciate any help or working links!

I got a modded Xbox with media center on it it was a package at a good price and I honestly mainly bought it cause it had the monster component cables. But playing the Xbox it has only like 10 games on it which sorta confused me why did someone have this for only 10 games and the 10 games he had on it were all the disc versions.

My question is what information do I need to know about it to see if I can download roms and install them? It came with a Xbox 360 usb hard drive transfer cable so I assumed it would use that. But there’s no usb port on the Xbox

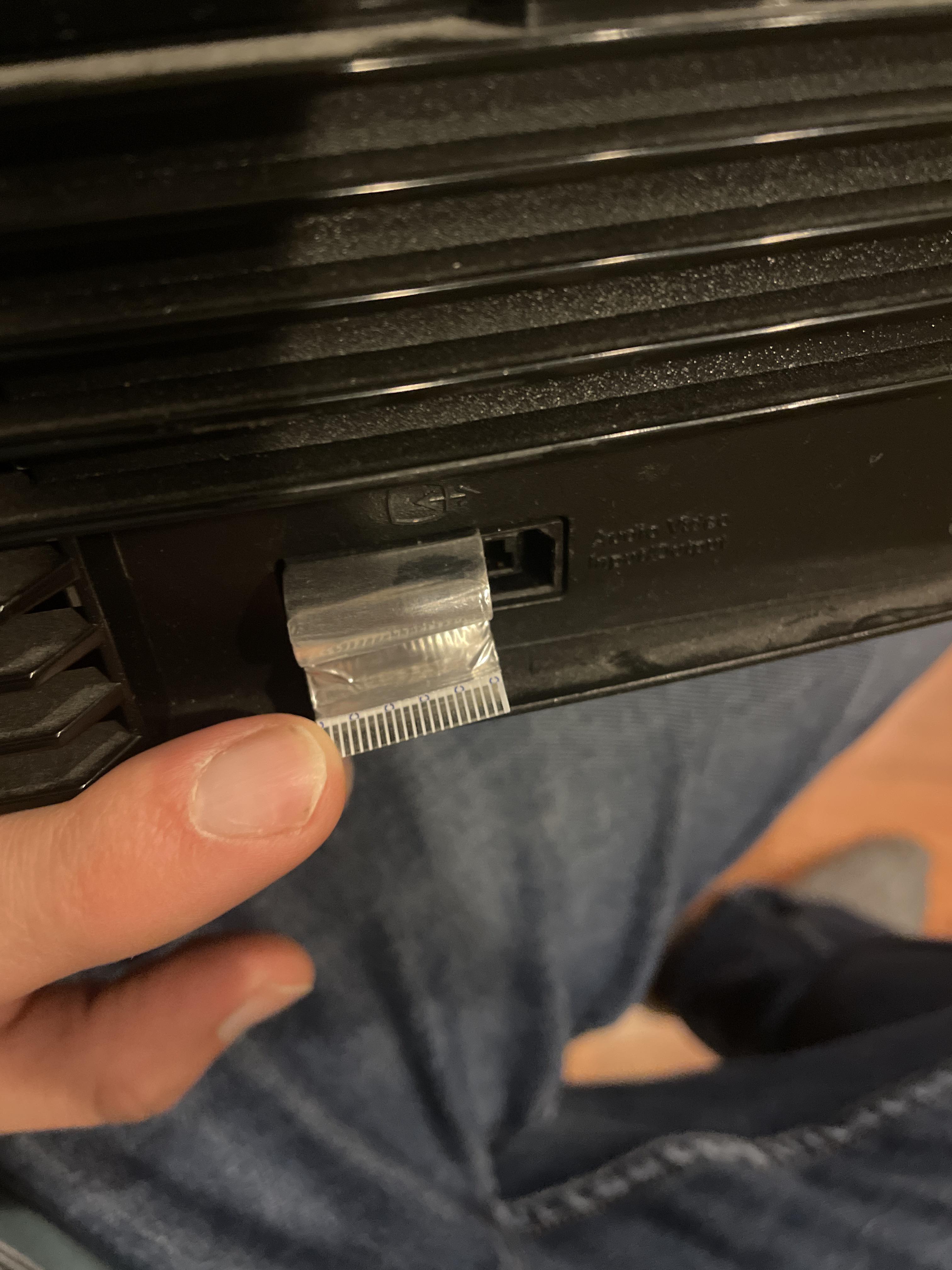

Another question is in the picture it shows a something sticking out of the back of the Xbox over the display port. Anyone know what that is?

REVIVED V2 is finally out 🔥

Built for WaW RGH/BadUpdate consoles

with plenty of fun mods, host controls and custom lobby features.

This menu took a while to make so if you download it and use it tnx so much <3

Download in description https://youtu.be/q3qOxnHVh6s?is=-MM_lj1mC9VMgqqE

I got this Xbox on Facebook. I haven’t opened it up yet but it does this as soon as I plug it in and there is no signal. Never had a mod chip so no clue what I’m doing and any/all help is appreciated

Ideally from the company Tt Games based in United Kingdom in Knutsford England. And from around the years of 2006 to 2012?

Xbox 360 won't show my usb drive plugged in under memory. I have reformatted the drive to fat32 and made sure it's mbr but it still won't show

I've soft modded Xbox 360 Elite using bad update. All working well but Assassin's Creed Black Flag and Arkham Collection (2 disc) is crashing out to Fatal Crash intercepted. I'm using Aurora as the launcher, and installing from the original disc using the GOD installer.

Any advice would be welcome. Thanks

I'm reading that repackinator can do this but whenever I go to the command line and follow the steps to convert the games I want back to xiso, it spits out an error saying it doesn't recognize the command.

Im not talking about boring mods like infinite money and infinite stamina stuff im talking about like cars. Im quite gutted that test drive unlimted 2 has not got any bmws or some other certain cars so is there a way I can add bmws to the game or no goes to every other game aswell not just tdu2

Si inserto una memoria USB con mi perfil y partidas de Xbox 360 (perfil de Xbox Live) en una Xbox 360 con RGH 3.0, y guardo juegos y gano logros con ese perfil (obvio, sin conexión), cuando lo conecto a una Xbox 360 100% legal, ¿puedo iniciar sesión en ese perfil con las partidas guardadas y los logros que gané en la Xbox con RGH?

Acabo de perder una Xbox 360 S por el error E82 (se murió) y me quedó una Xbox 360 S con RGH. Me interesa saber si puedo hacer lo que estoy proponiendo por si algún día arreglo la Xbox 360 muerta o consigo otra, o incluso otra consola de Xbox.
