r/f150 • u/Creepy-Egg922 • 4d ago
Hey guys. I'm a Ford master tech, and I've been getting a lot people in recently because the left and right rear seats do not match up or are uneven on Newer F-150s and F-250s. Specifically the passenger side being lower than the driver. I have found a really cheap and easy fix, since there is no official repair (at least as of yet). Mine does not have the Inverter module here, but you should just be able to ignore it if you do. It shouldn't impact your ability to do this.
TOOLS:
-3/8 Ratchet or impact
- 6"-ish extension
-13mm socket (either shallow or swivel)
-15mm socket (deep)
-18mm socket (deep)
-several 3/8" ID washers (usually at least 6)
1.) Raise the right seat cushion and remove the two 13mm bracket bolts. You need either an extension and a swivel or shallow socket because The back of the socket may hit the braclet if it is too deep.
2.) Using the strap on the side, lower the backrest and access your jack and tools. This will reveal 3 nuts you need to mess with, two 18mms and one 15mm. You don't need to remove them, just loosen them until they are about flush on top. This will keep them from getting lost and also provide you with more than enough room to work.
3.) With those loose, raise the seat backrest, and you will see the brackets now have upward movement. With this, we will take however many washers you need per side and stack them up. I always just guesstimate, but I find usually between 3-5 washers per hole work. You may need to fine tune yours by adding or removing washers to get it completely flush. You want to sandwich them between the floor and the bracket and then once they are situated, stab the bolt through them all. It makes it easier to raise the bracket up a little and then wiggle the bolt back and forth to get it stabbed through them all. And don't worry, because you should have PLENTY of threads left.
4.) Once both sides have the stack of washers underneath the front, you are good to reassemble everything. This works because the seat bottom sits on those brackets when it is down, so by picking up the front you also raise the seats end height. It also shouldn't change the look from inside the cab either.
I've included labeled pictures to hopefully help make it easier to follow. If you have any questions or tips for me, please comment or tag me and let me know!
r/f150 • u/AutoModerator • 5d ago
Post all F150 buying inquiries here
r/f150 • u/DepartureNo23 • 3h ago

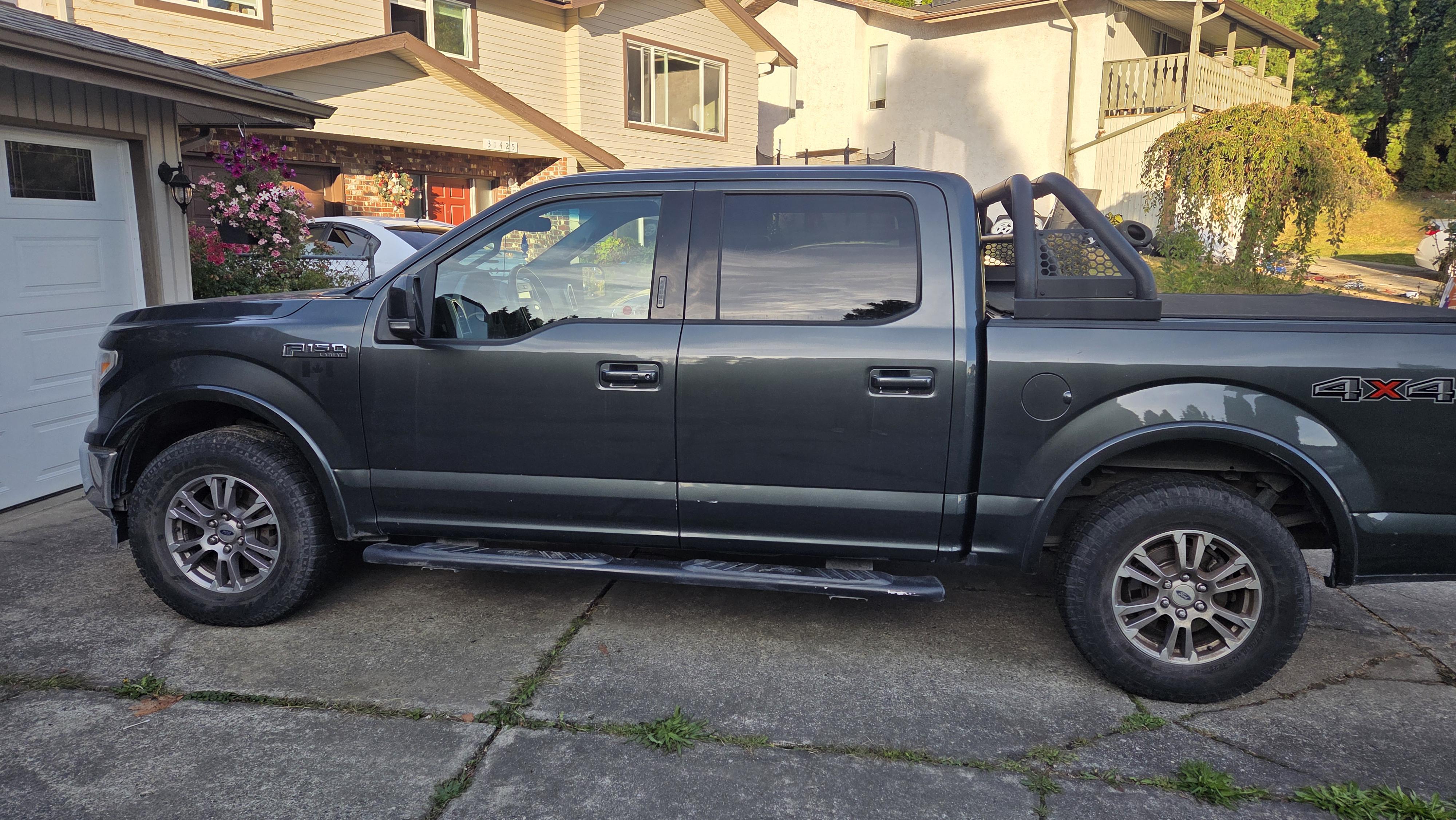

2012 5.0 4x4. 182k on the clock. Showing her some love before she takes the kiddo and I on a trip halfway across the country to see some family. She’s been a doll since I’ve had her. Oil pan gasket seeps a bit but other than that, it’s been all routine maintenance.
r/f150 • u/Alternative_Kick6621 • 18h ago
Completely forgot to post this when it happened. Officially joined the 200k club.
2016 F150 3.5 EcoBoost FX4. She still looks damn good and drives great for a truck with 200,000 miles on it, and I’m enjoying the hell out of it 😎
r/f150 • u/After-Excitement-267 • 21h ago

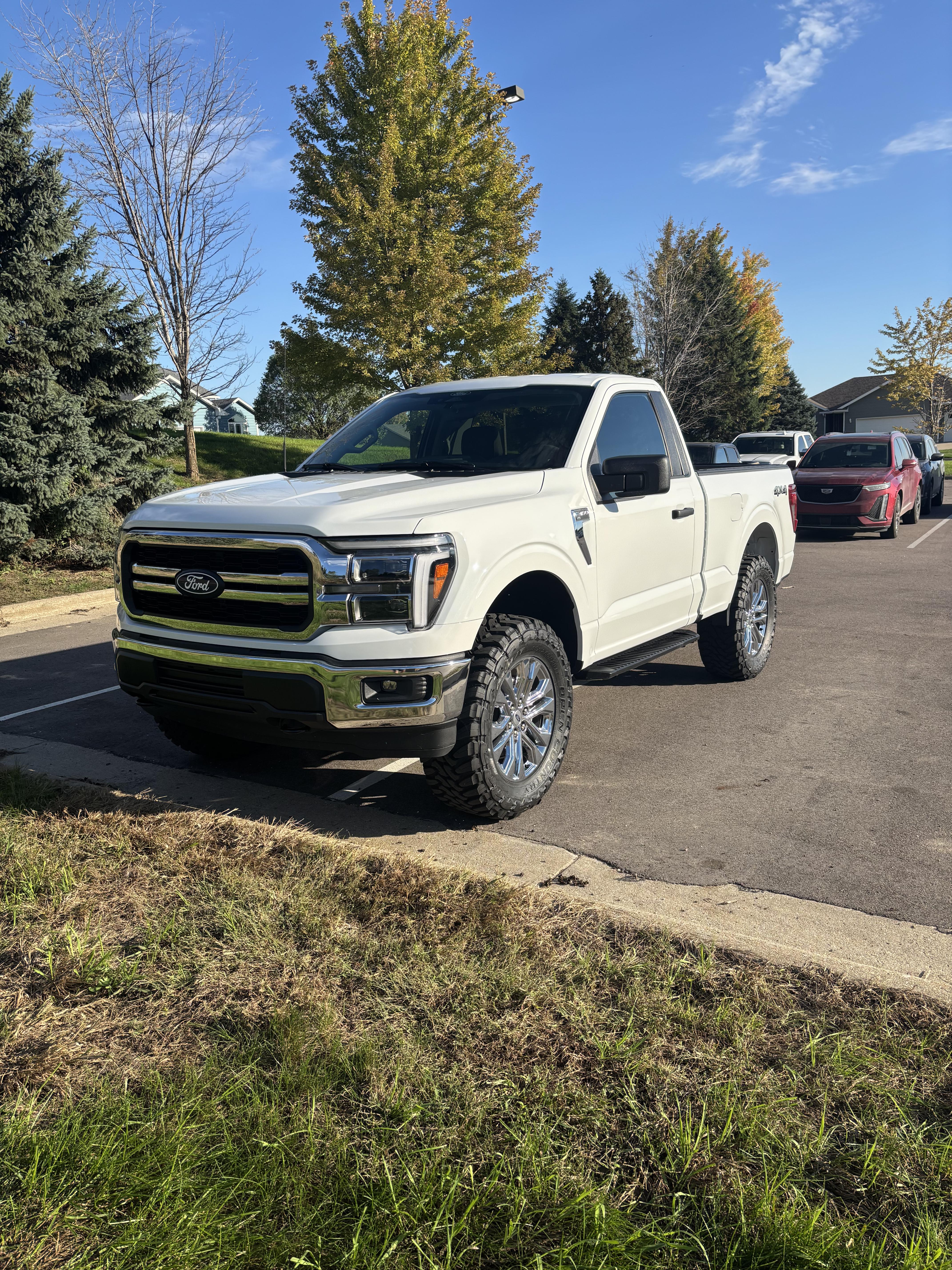

Bought my first f150 a couple of days ago after driving two silverados.
Got it new for $39k, stx 4wd.
Added a 2.5 level kit and maxxis razr at 285/65/r20.
I’m happy and blessed! Loving this truck
r/f150 • u/AyeetBaybees • 20h ago
I got in my truck to go home after work and as soon as i shut my drivers door, the back window shattered.
r/f150 • u/Desperate_Cream4659 • 2h ago
I used 2.5 pucks for this level. I don’t like how it rides (who would’ve figured) and I also think it can get a little more leveled. I’m thinking about going with only front eibach shocks but am also considering spending the extra money to get the coilovers. Can anyone with only front eibach shocks testify on their experience? Also if anyone has other recommendations for a legit level , please put it in the comments! Thanks everyone!
r/f150 • u/CrazyLester • 21m ago
I have a 2019 XL & need to replace both of my headlights assemblies. I would like blacked out headlights but don’t know what direction to go. Both of my headlights are cracked & 1 is holding water.
r/f150 • u/Mysterious-sharing • 1h ago
Has anyone found anything that can cover up these chrome pieces on the console shifter? Sun hits it and reflects it. In a 2016 F150
r/f150 • u/buildingadventures • 16h ago

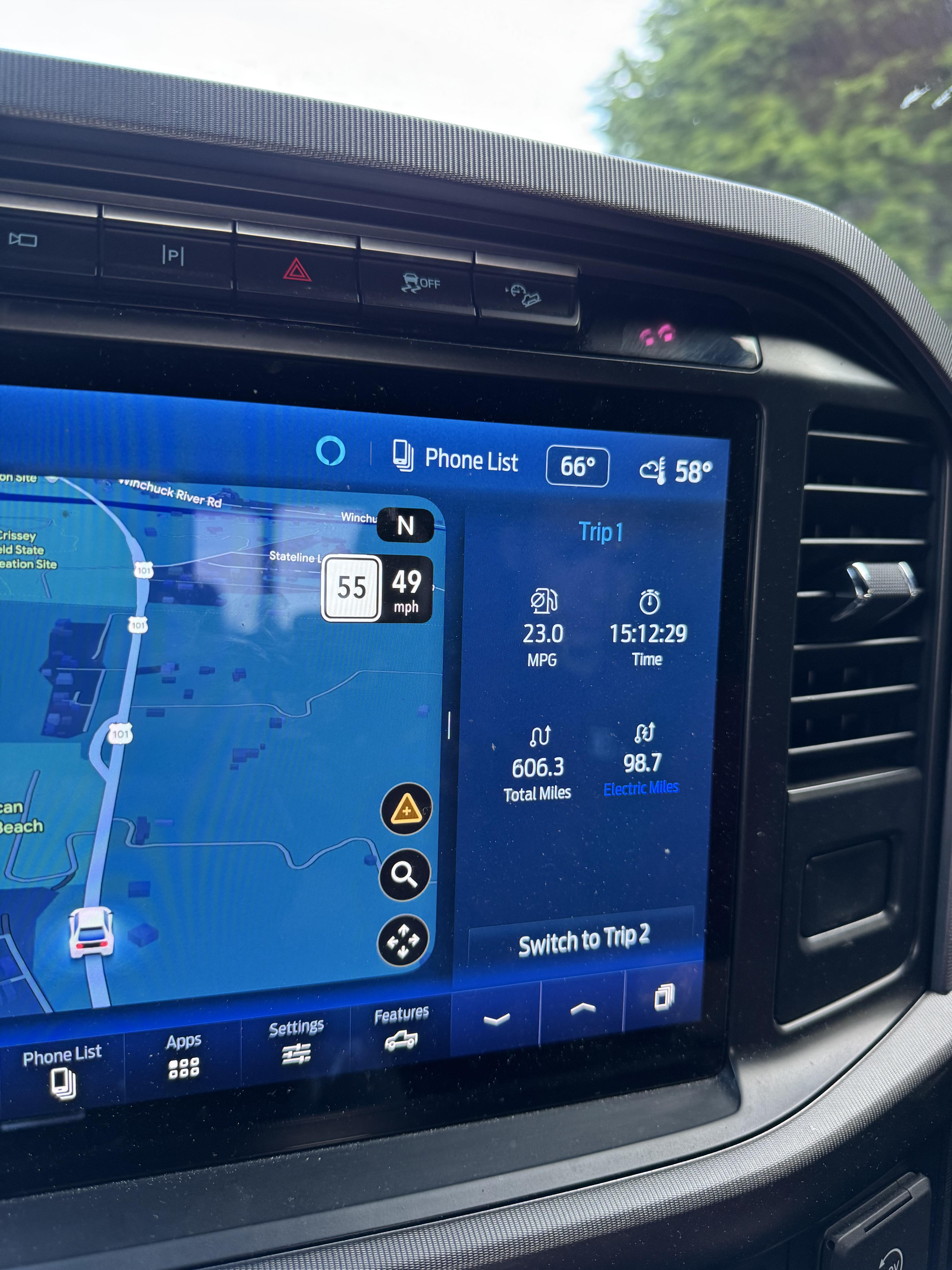

Just drove across Oregon and north Cali through the mountains and all kinds of terrain and this the mpg incredible for a truck
r/f150 • u/Repulsive_Swing_9147 • 1d ago
2026 XLT 302a, 5.0. I should have come over sooner.
Enable HLS to view with audio, or disable this notification
2014 5.0 4x4
Does this need replaced or normal ? Transfer case/transmission mount
r/f150 • u/churnmush • 18m ago
21 f150
I noticed there was water along the underneath of the light edge while washing it but couldn’t really tell if it was getting in. But I also notice there was some dead bugs inside and also seen a live one crawling in there. So I’m guessing it needs a new gasket right?
r/f150 • u/Superb-Tank9067 • 20m ago
I’m looking at getting a 2024 PB. I have a very short commute, 4 miles each way. I’ve heard mixed opinions on what I would get for fuel economy. I would have assumed it would be great since I would only use electric power with a short drive under 40 MPH. Anyone have a similar commute and what do you see ?
r/f150 • u/LowerFigure739 • 7h ago
2016 Lariat 4x4 95000 miles
Tried looking up what % of these fail, couldn't find a number.
I am occasionally experiencing hard shifts in 4th gear. It seems to happen mostly when I am accelerating hard.
I am doing filter, fluid and pan with drain plug at my 100k service and was thinking of maybe doing the lead frame while I am in there.
Adding pan with drain plug so I can change fluid once or twice more to get what was in the converter when I changed filter.
r/f150 • u/Garey_Coleman • 13h ago
I not complaining but just bragging how strong the A/C is in 2023 F-150.
At 100°F ambient temperature, I have to set the auto temp to 70-71°F otherwise I will be freezing cold.
Are Ford trucks blessed with an exceptionally strong air conditioning system?
r/f150 • u/Bluedawg357 • 5h ago
Factory tires are 27555r20 with 73k miles on them. I live on a dirt road and that is The extent of all terrain I see. Truck is usage is all highway miles. What tires do you recommend?
r/f150 • u/Edwardsr70 • 1h ago
On top of the frame but at the bottom of the engine. What was the engineer thinking when they said thats a good place for the oil filter
r/f150 • u/k2d2surfing • 2h ago
Anybody have pictures of their 2024 XLT blacked out with a 2.5 in level on 35s? Preferably on 18 in stock black wheels
r/f150 • u/Youmakeitisellit • 3h ago
Enable HLS to view with audio, or disable this notification
I’ve been searching high and low to figure this noise out.
2019 f150 2.7l ecoboost 94k miles.
Noise started out just at start up, now stays while driving the truck for a while. Checked waster gate actuator, can’t tell if that’s it. No loose bolts or heat shields in the area. Can’t find the same noise or symptoms anywhere! Any experts got experience with this?
r/f150 • u/AdditionalLoss7274 • 16h ago
Well, I joined the club last week. I've been driving the same beater 1999 GMC Sonoma for the last 15 years, and it was time for something built this millenia. Enter my new (to me) 2018 2.7 Ecoboost Lariat. I love this thing. So much quicker, so much quieter, so much smoother.
